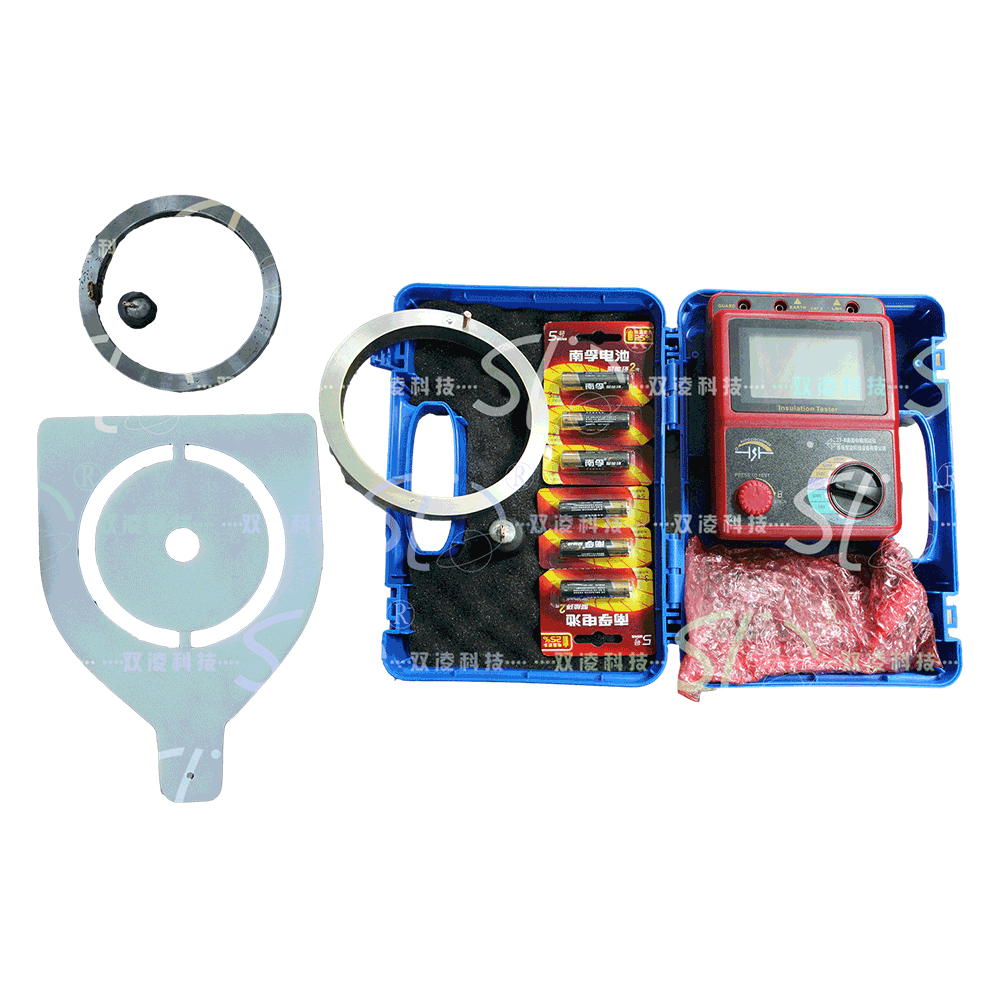

23-B Conveyor Belt Surface Resistance Tester

Overview:

Model 23-B surface resistance tester is composed of medium and large-scale integrated circuits. The meter has high output power, high short-circuit current value and many output voltage levels (four voltage levels for each model). The working principle is that the battery in the machine as a power supply by the DC/DC conversion of DC high voltage from the E pole out of the test article to reach the L pole, thus generating a current from the E to the L pole, after the I / V conversion by the divider to complete the operation will be measured directly by the LCD display of the insulation resistance value.

Technical parameters:

Output Voltage Rating

100V,250V,500V,1000V
Measurement range

0.001-1999MΩ

relative error

20~10000MΩ≤±5%±2d

0.1~19.9+10000~20000MΩ≤±10%±2d

resolution (of a photo)

0.001 MΩ,0.01 MΩ,0.1 MΩ,1.0 MΩ

Voltage/Load

1000V/2 MΩ

voltage drop

Approx. 10%
short-circuit current

>1.6mA

direct current (D.C.)

8X1.5V (AA,R6) Batteries
exchanges

220V/50Hz

power wastage

Static power consumption ≤ 160mW, maximum power ≤ 2.5W
volumetric

217mm(L)X217mm(W)X133mm(D)

weights

<1.8kg
