- Maximum load: 1000kN
- Structural form: single rod double-acting cylinder frame structure
- Test operation height: 500mm
- Drive control mode: microcomputer control electro-hydraulic servo
- Test type: Normal temperature metal tensile, etc.
- Overload protection: 105% overload protection (no deformation, no mechanical damage)
- Whole machine noise: not more than 70dB
- Accuracy of load indication value: better than ±1% of the indication value
- Load resolution: 500,000 yards and constant resolution throughout
- Force measurement range: 2%~100%F-S (full range, not graded)
- Load control accuracy: better than ±1% of the display value
- Stress control accuracy: better than ±1% of display value
- Displacement accuracy: better than ±1% of the displayed value
- Displacement resolution: 0.001mm
- Displacement control accuracy (speed): better than ±1% of displayed value
- Piston to move speed range: 0-50mm/min full load infinitely variable speed regulation
- Piston no-load maximum moving speed: not less than 100mm/min, and any adjustable
- Piston stroke: 1200 mm
- Stretching space: 1000mm
- Test width: 550 mm
- Center height of stretching space: 500 mm
- Maximum external dimensions of mainframe: about 5000×800×900 (L×W×H)
- Control cabinet external dimensions (mm): about 1100 × 700 × 930

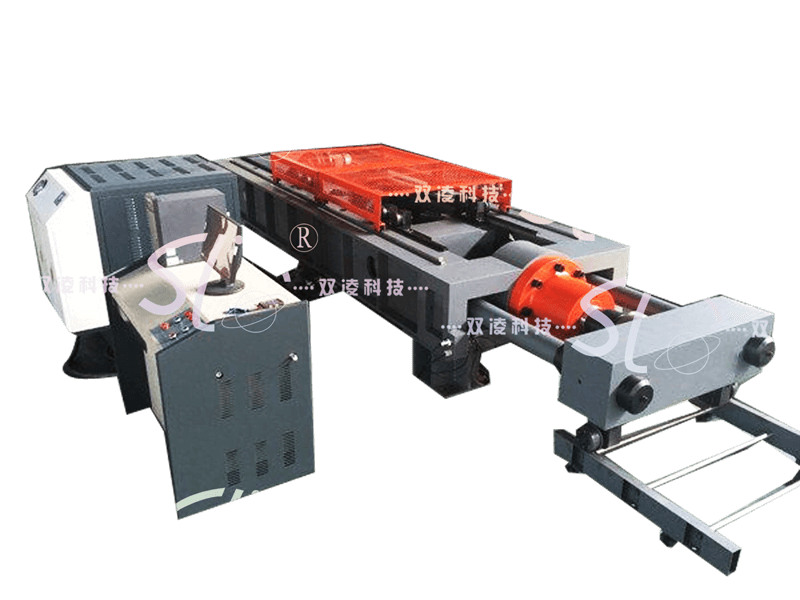

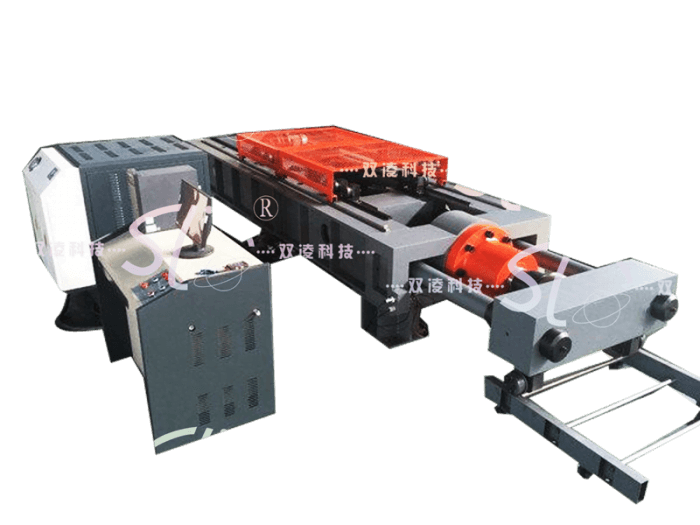

DL-1000KN computer-controlled horizontal tensile testing machine
Overview.
DL-1000KN type computer-controlled horizontal can carry out a variety of mine car connecting device, mine chain and other tensile experiments, increase the auxiliary Hou, metal materials, steel cables, chains, slings and other longer specimens of the tensile, widely used in the field of metal products, building structures, ships, military and other fields. Microcomputer-controlled electro-hydraulic servo horizontal tensile testing machine using my company's mature universal testing machine technology, increase the steel frame structure of the vertical test into a horizontal test, which increases the tensile space (can be increased to more than 20 meters, which is vertical test can not be done), to meet the large specimens, full-size specimen test.
The test machine adopts the whole steel plate welded frame structure of the frame, single rod double-acting piston cylinder to apply the test force, load sensor force measurement, according to the specification of the length of the specimen can be adjusted stepwise tensile space, the computer screen display of the test force and the test curve, according to the requirements of the test method to automatically process the test data, the machine for the coal power enterprises, coal mine machinery and equipment, safety inspection, technical supervision and other industries, the ideal test equipment! It is suitable for the tensile load and destruction test of wire and cable, porcelain bottle, double hook, steel stranded wire, safety belt, waist rope, foot buckle, etc. It is required to be flexible and convenient in operation, slow and steady in loading, and has the advantages of strong bearing capacity of the machine body.
