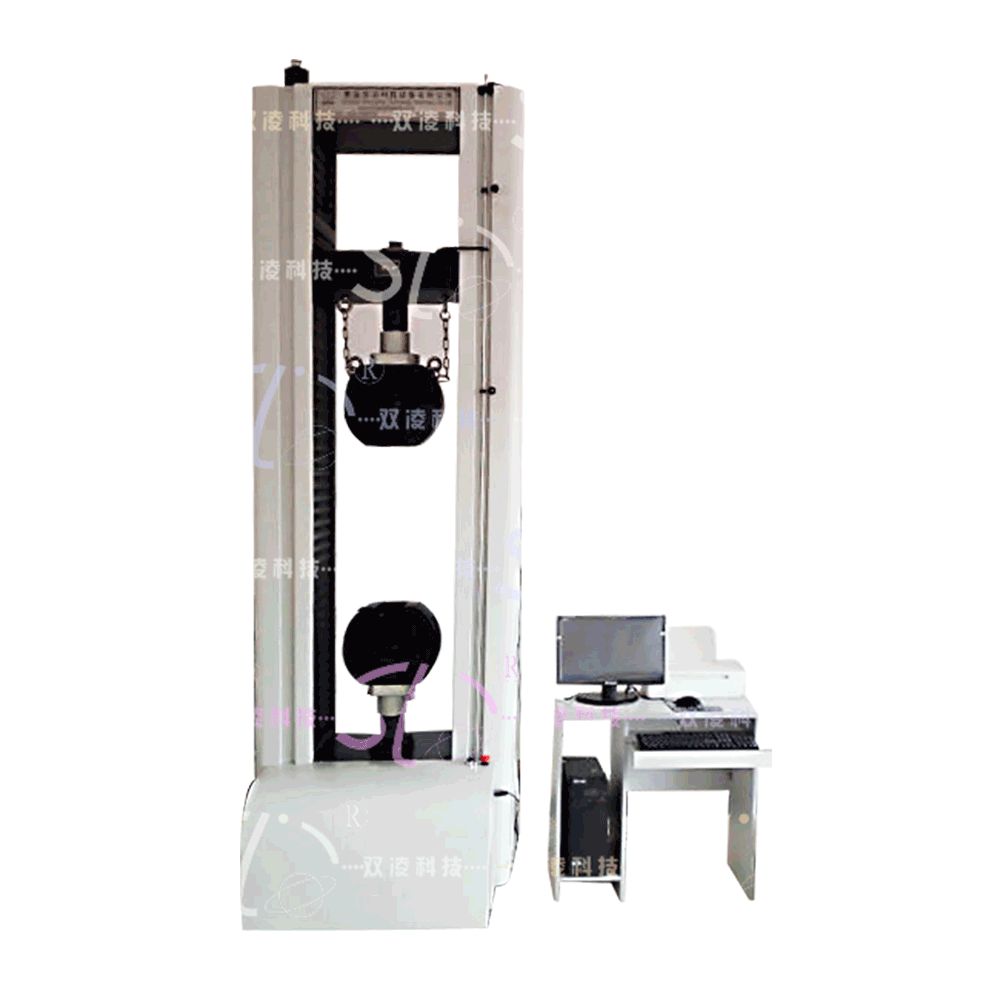

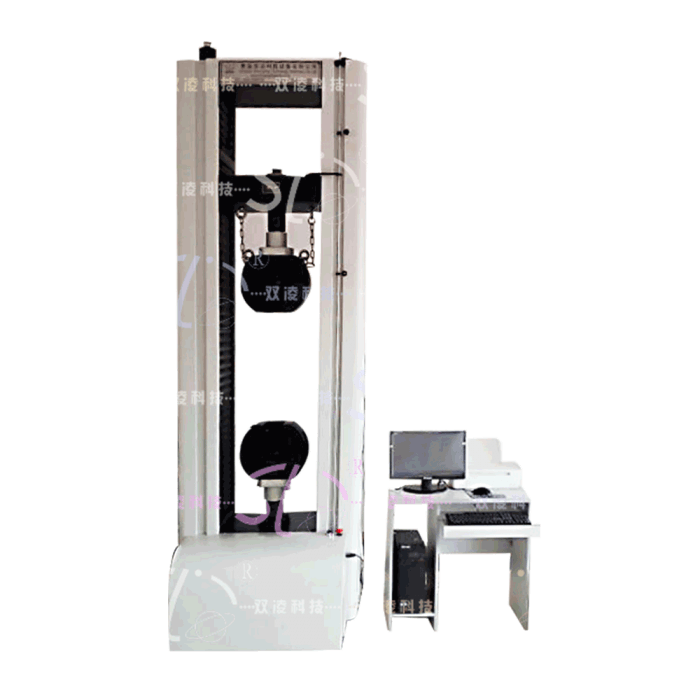

DL-200KN computer-controlled tensile testing machine

Overview.

DL-200 computer-controlled tensile testing machine for high-precision load testing machine, equipped with liquid crystal display, the use of microprocessor control and integration, digital measurement and control technology, and can be processed to print the information on the test material tensile stress, pressure, peeling, shear, adhesion, rubber and metal bonding, tearing, tensile strength of a new type of instrument. It is widely used in the rubber industry, plastic industry and other non-metallic materials of physical properties test. Applicable to quality supervision and inspection, teaching and research, rubber and plastic and other test areas. In line with GB/T 3690-2009 "fabric core conveyor belt full thickness tensile strength, elongation and reference force elongation test method" standard test requirements.

Technical Parameters.

Main machine structure form	Integrated mainframe frame structure form
Maximum test force	200kN
Accuracy of test force	Better than ±1% of displayed value
Measuring range of test force	1% to 100%Fs
Displacement measurement accuracy	≤±1%
Displacement resolution (mm)	0.002
speed range	1mm/min～500mm/min, stepless speed regulation
Speed Accuracy	±1%
Resolving power of test force	± 200,000 yards
Maximum Stroke	800mm
Maximum compression stroke	800mm
Width of test space	580mm
Overall dimensions (L×W×H)	1100×800×3200mm
Main body weight	1300Kg
power supply	380V 50Hz
Tension and compression	The structure of the host is a double test space, the lower space is the tensile space, the upper space is the compression and bending space.
