- Maximum molding width: 200mm
- Maximum molding belt length: 16000mm
- Maximum molding thickness: 16mm
- Wire supply tension control range: 5N-100N
- Line speed adjustment range: 10m-180m/min
- Width of cooling steel strip: 220mm
- Forming roller roll diameter: Ф250-Ф300 (user-provided)
- Maximum travel of the wire discharge wheel: 7500mm
- Maximum movement stroke of roller: 5000mm
- Maximum movement of cooling and shaping device: 200mm
- Hydraulic system working pressure: 3MPa-16MPa
- Minimum molding length: 800mm
- Winding speed: 180m/min
- The closing mouth of the 5 teeth pitch error: ≤ 0.03mm, tooth surface without joint marks
- Thickness error: ≤0.1mm
- Tension control: servo (weight control), light wheel automatic tension compensation
- Lining: winding on the mold, each wire tension error (±2N)
- Ball Screws: Gapless Screws
- Recipe storage: industrial control machine, networking signal transmission (transmission method provided by the user)
- Usage Environment.
- Temperature range: 0℃~35℃
- Humidity range: ≤90% No condensation
- Altitude: ≤2000m

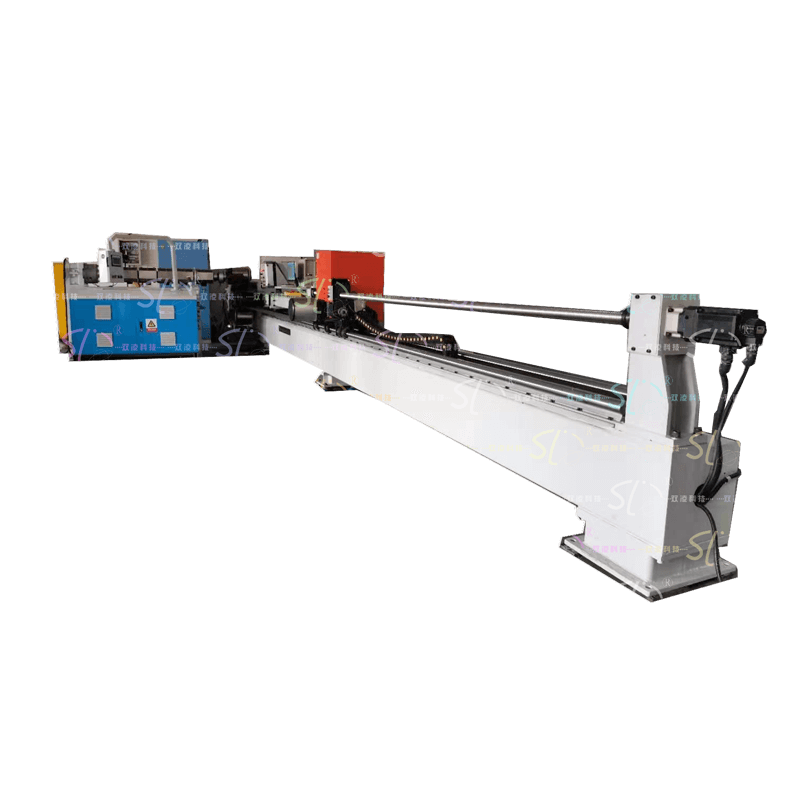

PHTC-16/200A PU ring type synchronous belt molding machine
PU ring type synchronous belt molding machine is adopting constant tension supplying line, automatic arranging line, cooling and forming of steel belt. It adopts tension machine and tension sensor for automatic tracking to realize tension synchronization, and uses adaptive adjusting device to realize the distance change between forming rollers and setting rollers to meet the production requirements of PU belts with different thicknesses.
