summarize::

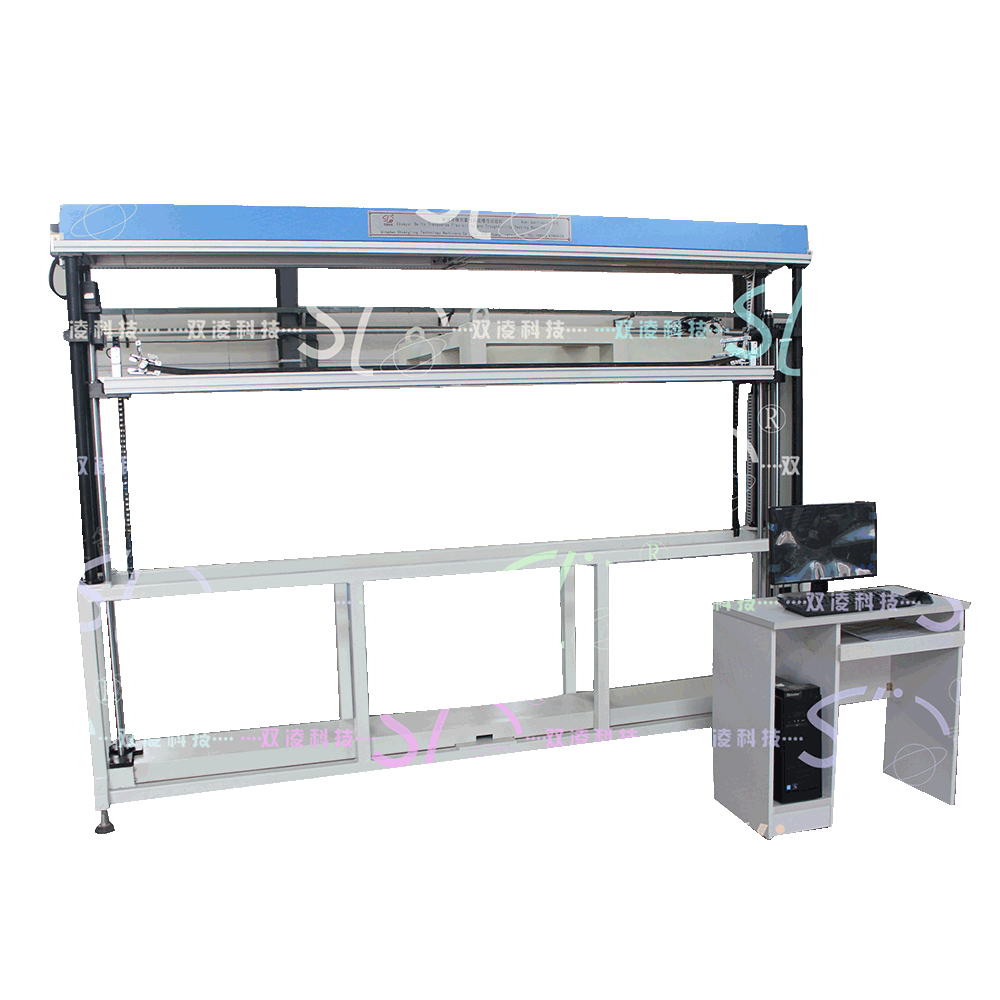

SC-2 conveyor belt transverse flexibility and groove test machine is a conveyor belt in the free sagging mode of transverse flexibility and groove test equipment, using a computer and PLC communication mode of control, with automatic vertical tracking and automatic reading function, data preservation and printing, report function. The equipment meets the requirements of GB/T7983/ISO703 standard.
Technical Parameters
|
Maximum specimen size |
200L*2600W*30Thickmm |
|
Maximum vertical height of groove |
1250mm |
|
Vertical height detection accuracy of groove formation |
(±1mm |
|
Maximum platform travel distance |
1400mm |
|
Supply Voltage |
AC240V 50HZ |
|
Maximum power consumption |
420W |
|
Overall dimensions |
3300X2250X540 (mm) |
|
Weight |
260Kg |
