Power of the whole machine | 11.5KW |
power supply | AC380V 50Hz three-phase five-wire system |
Roller motor power | 11KW |
Roller material | 45# steel, nitriding treatment |
Drum load speed | 200±5r/min |
air velocity | 2.0±0.1m/s; air flow adjustable |
Porous tube diameter: Φ40 (inner diameter), ventilation holes inner diameter Φ6mm 21, spacing 13mm
Distance between porous tube and roller: 600mm |
|
weights | Approx. 1400kg |
sizes | Mechanical cabinet 1200*840*1940mm Electronic control cabinet 1400*660*1660mm |
Apply tensioning force | The servo system automatically applies the tensioning force, applying range 343N-2000N, not exceeding 2000N, automatic belt breakage detection. |
Test time recording range | 99 hours, 60 minutes and 60 seconds, digital display adjustable, set time parameter value reached automatically stop. |
Temperature range | Room temperature-400°C Automatic over-temperature detection and shutdown, temperature measurement accuracy: ±1°C |
Computerized display of temperature profiles and printable. | |
temperature sensor | Three, (one practical and two pre-built) |
Specimen wrapping angle curvature and
applied value |
Wrapping angle radian 135° Applied force value 686N~1715N, can be set in sections. |
Wrapping angle radius 180° Applied force value 343N~1715N, can be set in sections. |

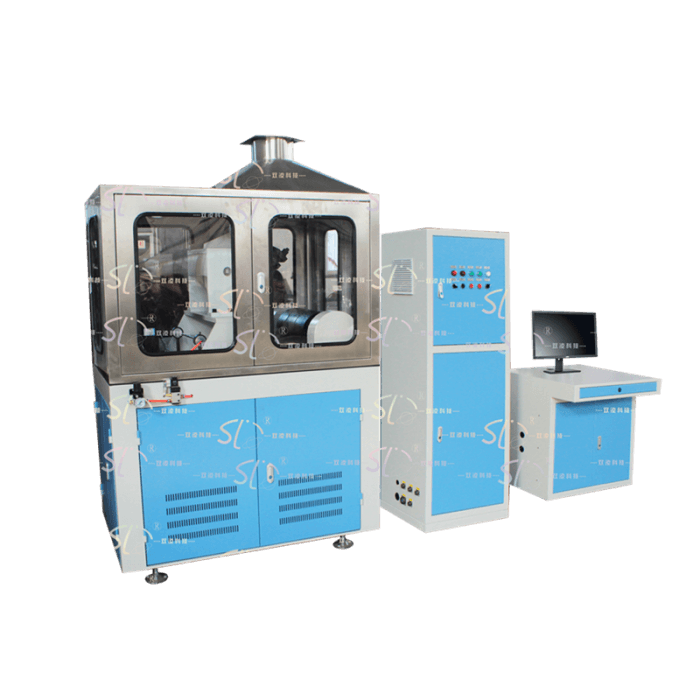

SGM-02C Conveyor Belt Intelligent Roller Friction Tester
Conveyor Belt Intelligent Roller Friction Testing Machine, conforms to the test and inspection use requirements of ISO20238:2018 Conveyor Belt Roller Friction Test, GB/T7986-2013 Conveyor Belt Roller Friction Test Method standard and MT914-2019 and other related standards. The machine is applied to the roller friction test of fabric core flame retardant conveyor belt and wire rope core flame retardant conveyor belt. The testing machine adopts computer intelligent control mode, AC servo system, automatic adjustable tension force test and other devices to realize the whole test process of the whole closed intelligent control, to realize the test process unattended.
Experimental results: can automatically record the test data, test temperature curve, save the test report can be printed.
