- Rotary knife motor power: 11KW
- Sanding width range: 150mm-220mm
- Sanding belt length: 2m-5m
- Active wheel speed range: 25-2r/min Control accuracy ±0.1r/min
- Grinding feed speed: 1-30mm/s
- Sharpening knife width: 235mm
- Grinding displacement detection accuracy: 05mm
- Diameter of active roller: Φ250mm
- Center distance adjustment: manual and cylinder tensioning, manual locking
- Power of active wheel rotating motor: 37KW AC frequency conversion motor
- X-axis feed motor power: 2.2KW AC servo motor
- Usage Environment.
- Temperature range: 0℃~35℃
- Humidity range: ≤90% No condensation
- Altitude: ≤2000m

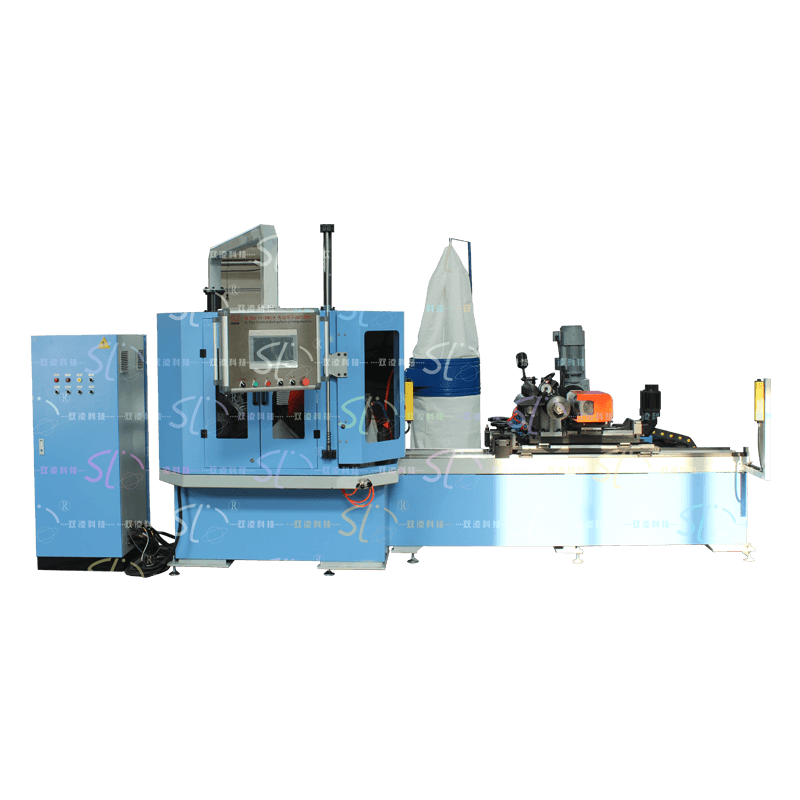

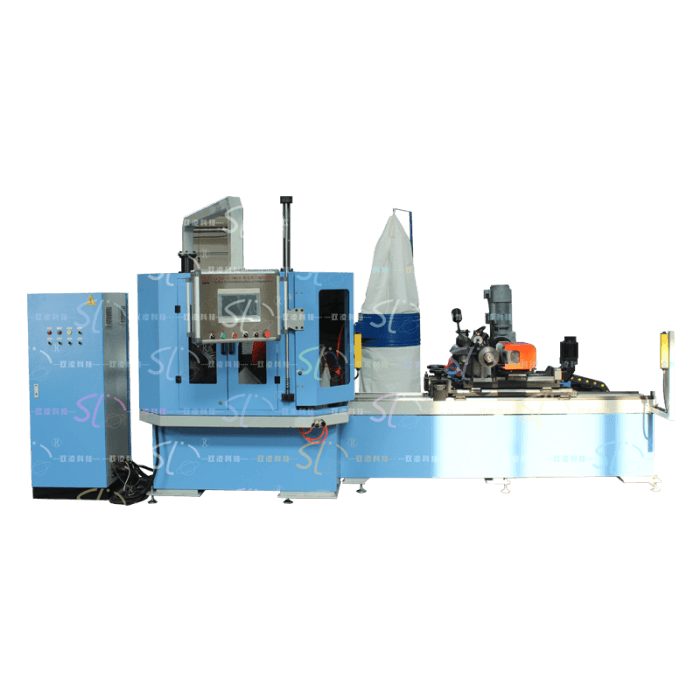

SLTDJ-11/200/A Drive Belt Surface Grinder
Synchronous belt grinder is a kind of fast fly cutter grinder designed and produced for the surface hairy not smooth which appears at present when the domestic basic grinding wheel is used, adopting high-speed running of fly cutter to cut and grind, and ensuring the consistency of width and angle of synchronous belt and V belt at the end of one time, in order to ensure its performance data, the feed amount of fly cutter grinder and feed amount of transmission belt adopts the micro-variable control of AC servo system, and the whole machine adopts PLC and touch screen communication to make the operation more easy and understandable. In order to ensure its performance data, the feed amount of fly cutter sanding and transmission belt feeding is controlled by AC servo system for micro-variable control, and the whole machine adopts PLC and touch screen communication for man-machine dialogue, which makes the operation easier and more understandable.
